| Lieu d'origine: | WUXI, CHINE |
|---|---|
| Numéro de modèle: | HKJ-450 |
| Quantité de commande min: | 1 |
| Détails d'emballage: | pleine charge de conteneur |
| Délai de livraison: | 20-30 jours |
| Conditions de paiement: | T/T, L/C |
| Capacité d'approvisionnement: | 30 PCs par mois |
| Nom de produit: | machine de granule, moulin de granule | Application: | alimentations de bétail, alimentations de volaille, alimentations de poissons |
|---|---|---|---|
| Fonction: | fabrication des granules d'alimentation des animaux | Tension: | 380V, triphasé |
| Type: | Commande par courroie | Puissance: | 45KW*2/55KW*2 |
| Couleur: | Adapté aux besoins du client | Capacité: | 10t/h |
| Surligner: | 10ème Ring Die Pellet Mill horizontal,10ème Ring Die Pellet Machine,55KW Ring Die Pellet Machine |
||

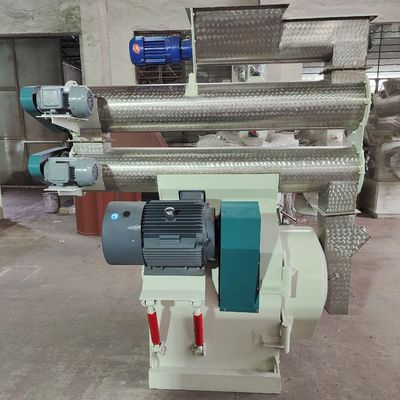

Horizontal Ring Die Pellet Mill Chicken Feed Maker Machine 55KW 10TH
| Model | Innder diameter of die |
Pellets size | Capacity | Main motor power | Feeder motor power | Conditioner Motor power |
| HKJ-32 | ￠ 320mm | ￠1.5-￠8mm | 2-3t/H | 22KW*2 | 1.1KW | 1.1KW |
| HKJ-35 | ￠ 350mm | ￠1.5-￠8mm | 3-5t/H | 30KW*2 | 1.1KW | 1.5KW |
| HKJ-40 | ￠ 400mm | ￠1.5-￠8mm | 5-8t/H | 45KW*2 | 1.1KW | 1.5KW |
| HKJ-450 | ￠ 450mm | ￠1.5-￠8mm | 5-12t/H | 45KW*2/55KW*2 | 1.5KW | 2.2KW |
| HKJ-480 | ￠ 480mm | ￠1.5-￠8mm | 5-20t/H | 55KW*2/75KW*2 | 1.5KW | 3KW |
Superior pellet quality
Long retention time in conditioner which contributes to sufficient mixing and gelatinization and resulting in hygienic and consistent good quality of shrimp feed.
Pellet size ranging from Φ1.2mm to Φ2.5mm, Starch gelatinization ≥45%.
High output
Optimized feed-to-pellet deflector structure, widened ring die working area to enable consistent high output and low energy consumption.
User-friendly
Optional electric lift for die change and roller adjustment, quick and precise operation; optional auto-lubrication system, saved labor.
Power drive system for optimal energy efficiency
The robust two-motor belt-drive system allows for smooth operation, low noise and optimal energy utilization. The improved drive system simplifies maintenance.
◎HKJ series pellet mill adopts SPZ narrow belt drive system, high driving efficiency & stability, low maintenance.
◎This series pellet mill can produce pellets of diameter 1.5mm to 8mm.
◎Fixed type stainless pellets cutting blade, Easy adjusting & Quick detachable hold hoop type ring die
◎Feeding is controlled by frequency inverter.
◎It is used to produce high quality poultry, livestock, fish, shrimp feedstuff pellets.
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer with almost 30 years’ experience in this industry. Our products are sold to more than 100 countries.
Q: I know little about feed machine and production line. How can I get start?
A: please let us know your business plan, such as which animal feeds you want to produce, how many tons of feeds you will produce per day, how many raw materials you use and so on. We will design the whole process flow for you, and our engineer will optimize the structure according to your plant.
Q: We do not have experience on operation and maintenance of the production line. How can I install and run a feed factory?
A: Our technician will get to your place and provide on-site installation instructions and operation trainings.
Q: What is your payment term?
A: 30 % T/T in advance & 70% T/T before shipment or 100% L/C at sight
